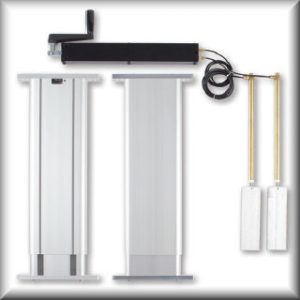

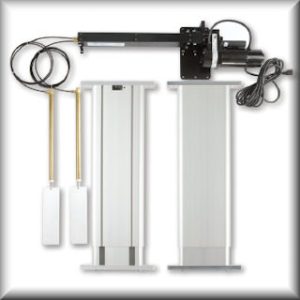

• Great for Many Applications.
• Internally mounted lift cylinders are hidden away
• Perfect application for OEMs and Custom Machine Builders.
• Adjustment range: 12″, and 16″ stroke.
• Lifting capacities 500, 1,000 & 1,500 lbs.
• Single acting cylinders, power up and gravity down. Requires appx. 20 lbs. (1,000 lb system) to 30 lbs. (1,500 lb system) of weight per cylinder to retract properly.
• Design Guidelines:
  • Tubing Bend Radius is 1-1/2″ min.
  • Duty Cycle for electric motors is typically is one (1) minute ON with five (5) minutes OFF rest time.
  • Uneven Loads are OK, as long as the minimum load to retract the legs is applied to each leg AND the maximum load is not exceeded for each leg.
  • Durability Testing – Unit design has been tested to meet or exceed 30,000 cycles.
  • Lift Speed for 1,000 lb systems is five (5) turns of the hand crank for one (1) inch of travel.  35 seconds total travel time for 12″lift, electric motor.
  • Lift Speed for 1,500 lb systems is ____ (__) turns of the hand crank for one (1) inch of travel.  42 seconds total travel time for 12″lift, electric motor.

The post <span style="color: #5b0f00;"><strong>Workbench Accessories</strong></span> – Lift Kits – TLA Telescoping Aluminum Legs to Build or Retrofit your Own Ergonomic Tables… appeared first on RDM Industrial Products.

• Easily mounts inside most 3″x 3″ extruded aluminum profiles.
• Internally mounted cylinder neatly hides away unwanted outside obstructions.
• Perfect application for OEMs and Custom Machine Builders.
• Adjustment ranges available in: 6″, 8″, 10″& 12″ stroke.
• Lifting capacities up to 1,500 lbs (Heavy Duty).
• Single acting cylinders, power up and gravity down. Requires appx. 20 lbs. of weight per cylinder to retract properly.
• Design Guidelines:
  • Tubing Bend Radius is 1-1/2″ min.
  • Duty Cycle for electric motors is typically is one (1) minute ON with five (5) minutes OFF rest time.
  • Uneven Loads are OK, as long as the minimum load to retract the legs is applied to each leg AND the maximum load is not exceeded for each leg.
  • Durability Testing – Unit design has been tested to meet or exceed 30,000 cycles.
  • Lift Speed for 1,000 lb systems is five (5) turns of the hand crank for one (1) inch of travel.  35 seconds total travel time for 12″lift, electric motor.
  • Lift Speed for 1,500 lb systems is ____ (__) turns of the hand crank for one (1) inch of travel.  42 seconds total travel time for 12″lift, electric motor.

The post <span style="color: #5b0f00;"><strong>Workbench Accessories</strong></span> – Lift Kits (INTERNAL) to Build or Retrofit your Own Ergonomic Aluminum Extrusion Frame Tables… appeared first on RDM Industrial Products.

• Easily mounts inside most 2″x 2″ and 3″x 3″ extruded aluminum profiles.
• Internally mounted cylinder neatly hides away unwanted outside obstructions.
• Perfect application for OEMs and Custom Machine Builders.
• Adjustment ranges available in: 6″, 8″, 10″, 12″, 14″, and 16″ stroke.
• Lifting capacities up to 1,500 lbs (with a Heavy Duty Dyna-Lift).
• Single acting cylinders, power up and gravity down. Approximately 20 lbs. of weight per cylinder to retract properly.
• Design Guidelines:
  • Tubing Bend Radius is 1-1/2″ min.
  • Duty Cycle for electric motors is typically is one (1) minute ON with five (5) minutes OFF rest time.
  • Uneven Loads are OK, as long as the minimum load to retract the legs is applied to each leg AND the maximum load is not exceeded for each leg.
  • Durability Testing – Unit design has been tested to meet or exceed 30,000 cycles.
  • Lift Speed for 1,000 lb systems is five (5) turns of the hand crank for one (1) inch of travel.  35 seconds total travel time for 12″lift, electric motor.
  • Lift Speed for 1,500 lb systems is ____ (__) turns of the hand crank for one (1) inch of travel.  42 seconds total travel time for 12″lift, electric motor.

The post <span style="color: #5b0f00;"><strong>Workbench Accessories</strong></span> – Lift Kits (EXTERNAL) to Build or Retrofit your Own Ergonomic Aluminum Extrusion Frame Tables… appeared first on RDM Industrial Products.

Adjustable lift systems provide ergonomic option for worker safety and comfort.

• Complete and Ready-To-Install Height Adjustable Ergonomic Workstations
• Choose from 1-6 Cylinders (Legs)
• 250 pound capacity per leg on a 4-post system
• 1,000 pound max capacity on 6-post system
• Manual or Electric Operation
• Stainless Steel Leg Systems
• Custom Systems Available
• Standard Unit Offers 0-16 Inch Height Adjustment Range
• Uses Colorless, Odorless, Non-Staining, Non-Toxic Fluid
• Smooth Quiet Operation
• Available in 6″, 8″, 10″, 12″, 14″ & 16″ Strokes

Unit w/ Electric Motor

Unit w/ Manual Crank

Heavy-Duty Lift (1500 lb capacity)

Adjustable lift systems for heavier applications.

• Complete and Ready-To-Install Height Adjustable Ergonomic Workstations
• Choose from 1-4 Cylinders (Legs)
• 375 pound capacity per leg on a 4-post system
• 1,500 pound max capacity on 4-post system
• Manual or Electric Operation
• Standard Unit Offers 6,8,10,12 & 20 Inch Height Adjustment Range
• Uses Colorless, Odorless, Non-Staining, Non-Toxic Fluid
• Smooth Quiet Operation

OTHER HYDRAULIC SYSTEM STYLES:

External Leg Assembly on Aluminum Extrusion

(1,000 – 1,500 lb Systems)
See More Info…  (Click Here)

• Retrofit the “D” style cylinder to any size extrusion via the “L” Bracket.
• Old Bracket universally fits many different brands and sizes of extruded aluminum profiles via the T-Slot.
• Simply tighten down the “L” Bracket to the T-Slot with an Allen wrench.
• Easy installation as an OEM design or as an add-on retrofit to a pre-existing structure.
• Available in 6″, 8″, 10″, 12″, 14″, 16″ & 20″ Strokes

Internal Leg Assembly on Aluminum Extrusion

(1,000 & 1,500 lb Systems Only)
See More Info…  (Click Here)

• Easily mounts inside most 2″x 2″ and 3″x 3″ extruded aluminum profiles.
• Internally mounted cylinder neatly hides away unwanted outside obstructions.
• Perfect application for OEMs and Custom Machine Builders.

The post <span style="color: #5b0f00;"><strong>Workbench Accessories</strong></span> – Lift Kits (EXTERNAL / INTERNAL) to Build or Retrofit your Own Adjustable Height Tables… appeared first on RDM Industrial Products.

Standard Base Lift (500-1500 lbs)

The post <span style="color: #5b0f00;"><strong>Workbench Accessories</strong></span> – Lift System – Telescopic Leg System TLA Lift System appeared first on RDM Industrial Products.

Heavy-Duty Base Lift (375-1500 lbs)

The post <span style="color: #5b0f00;"><strong>Workbench Accessories</strong></span> – Lift System – Heavy-Duty D1A 1,500 lb Capacity appeared first on RDM Industrial Products.

Standard Base Lift (250-1000 lbs)

RDM Lift System
Model RDM-D1A-ELEC-4P-12

RDM Lift System

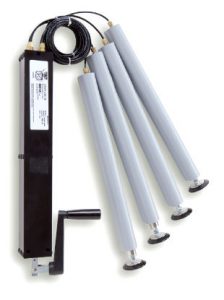

Model RDM-D1A-HAND-4P-12

The post <span style="color: #5b0f00;"><strong>Workbench Accessories</strong></span> – Lift System – Standard D1A 1,000 lb Capacity appeared first on RDM Industrial Products.
